  1. KEY ID
  2. KEYID ETH Contracts introduction

Logic Management Module

PreviousAccount Storage ModuleNextLogic Module

Last updated 5 years ago

Was this helpful?

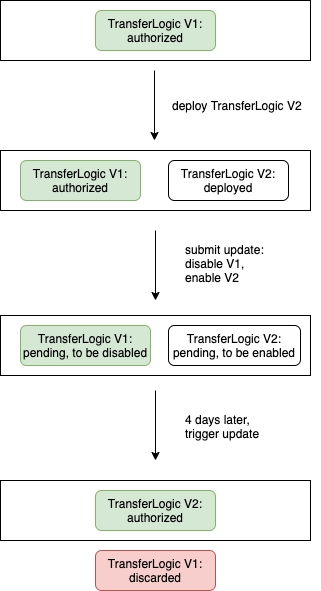

Logic contracts authorized by Logic Management Module can be added or removed with delay, and the pending time can also be altered with delay. Any update of logic contracts should follow . Below is a diagram showing the procedure of logic update:

LogicManager.sol

Description: management of all logic contracts function submitUpdatePendingTime(): alter pending time (with delay) function triggerUpdatePendingTime(): trigger updating pending time function submitUpdate(): update logic contract (with delay) function cancelUpdate(): cancel an update of logic contract function triggerUpdate(): trigger updating logic contract function isAuthorized(): check if a contract is an authorized logic contract function getAuthorizedLogics(): get all authorized logic contracts

strict procedures
MYKEY logic update diagram
